Ford F150 Lift Kit with Bilstein B60 and B5160 Shocks Plus Rear Lift Blocks
$4,646.74
Complete Suspension Lift Kit With Bilstein B60 Front Shocks, Bilstein B8 5160 Remote Reservoir Rear Shocks, Bilstein Front Coils, Eibach Rear Lift Block Kit and Upper Control Arm Kit
1 in stock now
- Free shipping on all orders over $50
- 30 days easy returns
- All taxes and customs duties included
This kit includes Bilstein B60 Front Shocks, Bilstein B5160 Remote Reservoir Rear Shocks, Bilstein Front Coils, Eibach Rear Leaf Spring Block Kit and Upper Control Arm Kit.
For the absolute ultimate in heavy duty offroad capabilities, nothing surpasses the Bilstein B60.
The monotube construction offers exceptional heat dissipation via huge oil volume, which in turn means enhanced overall durability and a consistent level of damping performance. The Bilstein B60 shock absorber the ultimate choice for heavy duty touring and offroad use.
Multiple snap-ring grooves in the body allow for different spring seat positions offering more flexibility to adjust the front ride height.
The Bilstein B8 5160 is a B8 with an added remote reservoir, the BILSTEIN B8 5160 provides ultimate vehicle control on even the harshest terrain. Zinc plating and increased oil capacity dissipate more heat assuring long term durability. Thanks to the Remote reservoir technology expanding the limits of your suspension system. Rather than housing the gas chamber in the shock body, the gas chamber instead is located in the reservoir. As a result, oil capacity is also expanded, creating greater heat dissipation, eliminating reduced performance due to overheating and improving long-term durability.
Fixed Offset Upper Control Arm Kit with Ball Joints is an all-in-one solution for any vehicle that has been lifted between 30mm and 70mm. After raising the vehicle ride height, not only does the vehicle run into camber and caster issues, but ball joint articulation and clearance issues to the coil over strut at ride and droop height. Installing an aftermarket fixed offset upper control arm helps to restore camber and castor to improve wheel alignment geometry and allows additional clearance to the suspension components.
Eibach Rear Blocks will raise the rear approx. 1 Inch to provide a more level ride height. This kit includes two rear blocks, 4 U-bolts and eight nuts for easy installation.

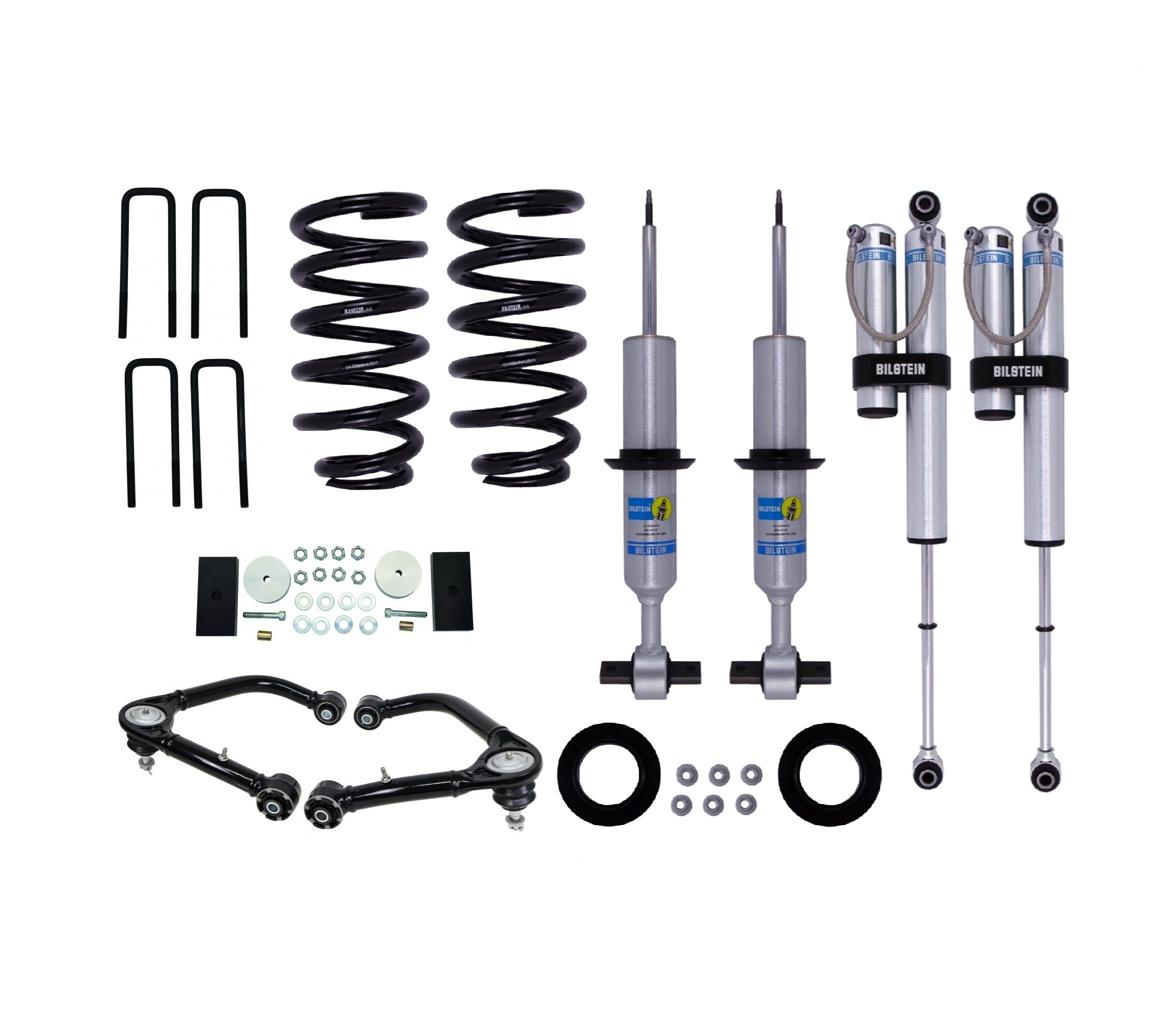

This complete suspension lift kit comprises of the following products:
1 Pair Bilstein B60 Front Struts
1 Pair Bilstein Front Coils
1 Pair Bilstein B5160 Remote Reservoir Rear Shocks
1 Eibach Rear Leaf Spring Block Kit
1 Pair Front Upper Control Arms
Approximate Front Lift Height: 0-2.5″
Approximate Rear Lift Height: 1″
Disclaimer:
Suspension lifts, wheel & tyre combinations, and other modifications may exceed legal limits in some jurisdictions. It is the purchasers responsibility to ensure all vehicle modifications comply with the applicable laws and regulations in their state or territory. Wilkinson Suspension accepts no liability for any compliance issues, fines, insurance implications, defect notices, or legal consequences arising from the installation or use of these products.
Product Notes:
Degree of raised height may vary depending on life and/or age of the vehicle, accessories fitted, material used for accessories and some factory options.
Click Here for Warranty Information
Please note images are only a representation of the parts and may not necessarily be the image of the part number you are viewing.
| Weight | 46 kg |
|---|---|
| Dimensions | 80 × 50 × 50 cm |
This part fits the following models:
| Make | Model | Variant |
|---|---|---|
| Make | Model | Variant |
| Ford | F150 | 2021-Onwards (Excl. Tremor) |
