HR TRAK 20mm Wheel Spacers
$330.00
Spacers Sold as a Pair – Select quantity in the desired colour.

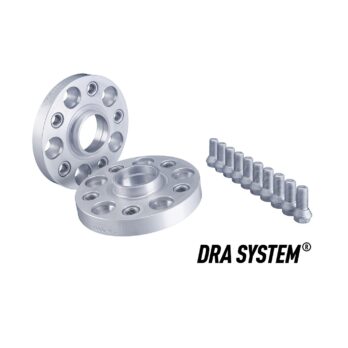

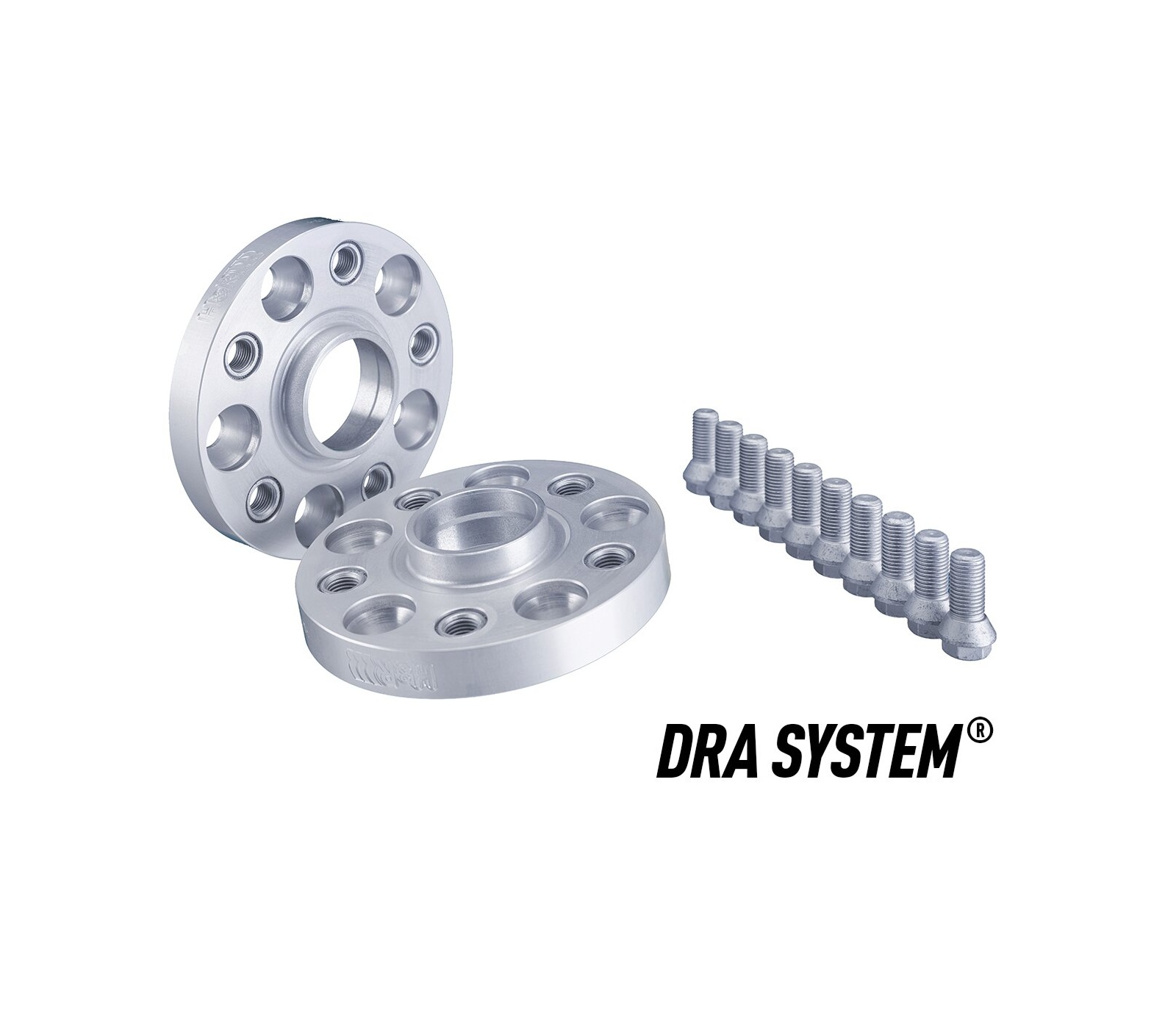

HR-40555712 Spacer (Silver)

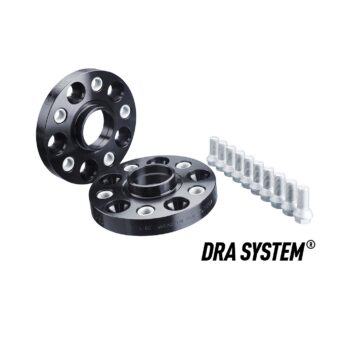

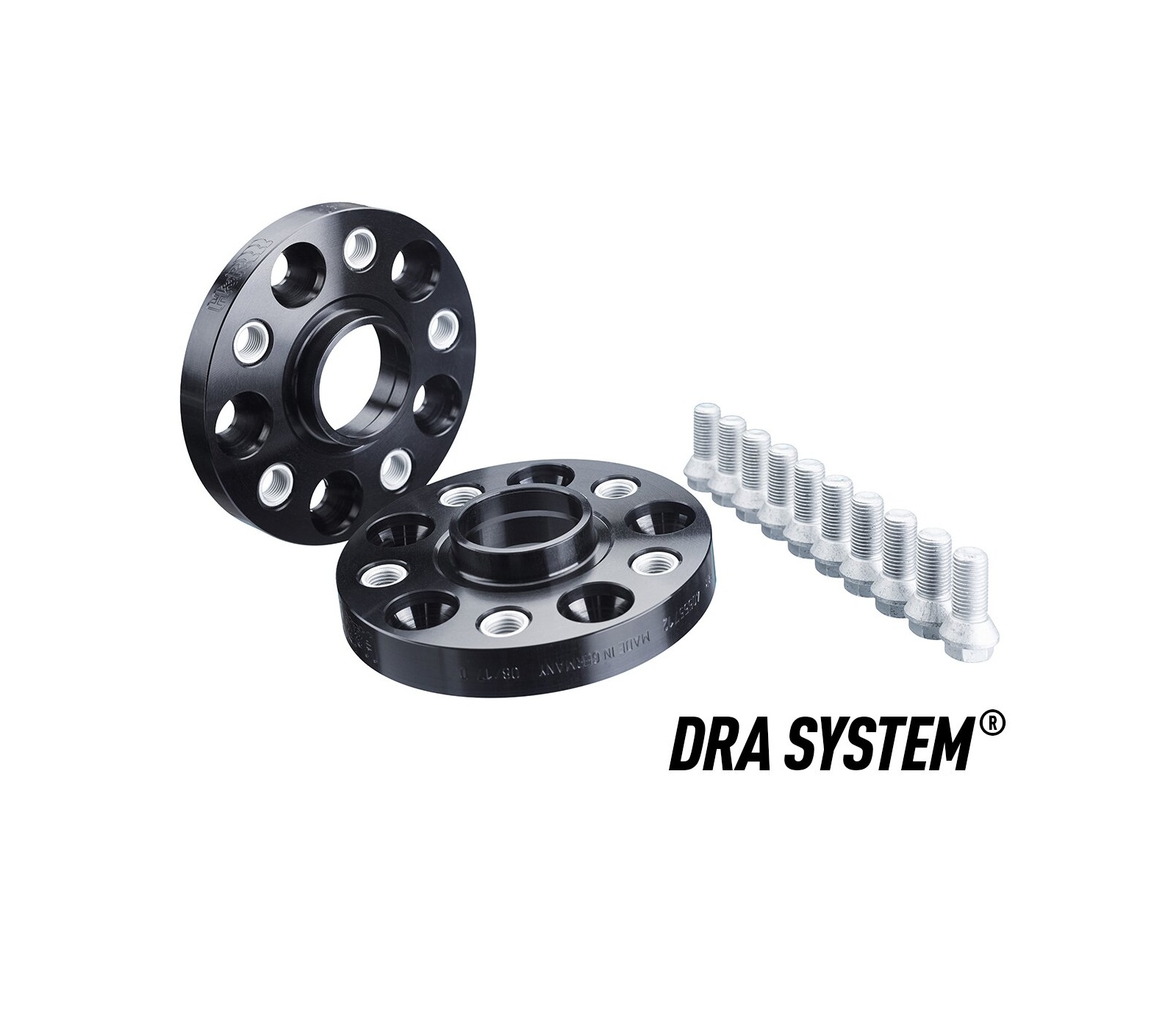

HR-B40555712 Spacer (Black)
- Free shipping on all orders over $50
- 30 days easy returns
- All taxes and customs duties included
H&R Trak+ Wheel Spacers
When it comes to optimizing your vehicles performance and aesthetics, one brand consistently stands out – H&R. This renowned automotive company has been designing and manufacturing high-quality parts for over four decades. Among their offerings, the Trak+ Wheel Spacers have gained immense popularity among car enthusiasts in Australia, and around the world.
The Trak+ Wheel Spacers from H&R have been meticulously designed to work seamlessly with your vehicle. They widen your vehicles stance, providing improved handling, performance, and safety. In addition, these wheel spacers lend an aggressive look to your car, making it stand out on the streets.
- Available in Black or Silver – Selection required
- Made from high quality propriety alloy
- For OEM Wheels – See notes regarding aftermarket wheels.
Spacer Type
DRA Series
The wheel spacer should be fitted to the axle hub using the fastening bolts provided. The wheels should then be fitted using the existing wheel bolts provided with the wheels.
The length of the existing screw sticking out of the rim, must be shorter than the width of the wheel spacer!

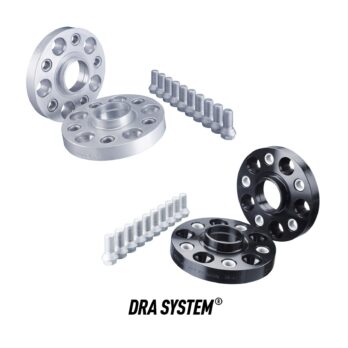

20mm Spacer Options:
1 Pair HR-40555712 (Silver)
1 Pair HR-B40555712 (Black)
Read all notes below relating to fitment and clearance.
Important Notes:
Choice of spacer is the sole responsibility of the purchaser, any advice given is general and the purchaser must perform all the required clearance checks to ensure correct fitment.
Wheel Spacers are Hub Centric, if the spacer does not sit flat to the hub or there is excessive moment before fitting wheel, do not fit the wheel and contact us for further assistance.
Ensure that the wheel bolts do not damage any part of the brake system, turn the first bolt in by hand and rotate the wheel to check for clearance on the inside edge.
All Spacers are not to the used with Steel Rims.
Check the legality of Wheel Spacers with your local Department of Transport.
For aftermarket wheels please contact our sales team as the wheel spacer and bolt combination stated is generally not the same with aftermarket wheels, our sales team can assist you to find the required parts.
Fitment Notes:
Bolt-on Kit – extended wheel bolts not included.
Click Here for Warranty Information
Please note images are only a representation of the parts and may not necessarily be the image of the part number you are viewing.
This part fits the following models:
| Make | Model | Variant |
|---|---|---|
| Make | Model | Variant |
| Audi | A3 | 8P Cabrio 04/2008-2012 |
| Audi | A3 | 8P Quattro Cabrio 04/2008-2012 |
| Audi | A3 | 8P Quattro Sedan; Sportback 09/2003-2012 |
| Audi | A3 | 8P Sedan; Sportback 03/2003-2012 |
| Audi | A3 | 8V Cabrio 03/2014-ON |
| Audi | A3 | 8V Quattro Cabrio 03/2014-ON |
| Audi | A3 | 8V Quattro Sedan; Sportback 05/2012-ON |
| Audi | A3 | 8V Sedan; Sportback 05/2012-ON |
| Audi | A3 | 8Y Quattro Sedan; Sportback 2021-On |
| Audi | A3 | 8Y Sedan; Sportback 2021-On |
| Audi | A4 | B5 01/1999-2001 |
| Audi | A4 | B5 Quattro 02/1995-2001 |
| Audi | A4 | B6 (8E) Quattro Sedan 11/2000-2006 |
| Audi | A4 | B6 (8E) Quattro Wagon; Cabrio 11/2000-2006 |
| Audi | A4 | B6 (8E) Sedan 11/2000-2006 |
| Audi | A4 | B6 (8E) Wagon; Cabrio 11/2000-2006 |
| Audi | A4 | B7 (8E) Quattro Sedan 2005-2007 |
| Audi | A4 | B7 (8E) Quattro Wagon; Cabrio 2005-2007 |
| Audi | A4 | B7 (8E) Sedan 2005-2007 |
| Audi | A4 | B7 (8E) Wagon; Cabrio 2005-2007 |
| Audi | S3 | 8P 01/2007-2012 |
| Audi | S3 | 8V Cabrio 05/2012-ON |
| Audi | S3 | 8V Sedan; Sportback 05/2012-ON |
| Audi | S3 | 8Y 2021-On |
| Audi | S4 | B5 Sedan; Wagon 09/1997-2001 |
| Audi | S4 | B7 2004-2008 |
